Part Number: CXPRQH-D-012, CXPRQH-D-013, CXPRQH-D-014

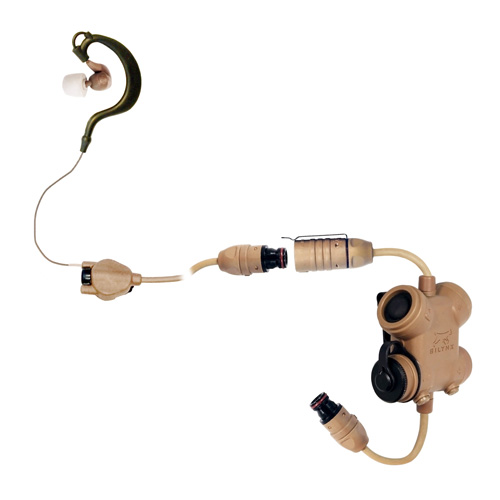

Industry's smallest and lightest tactical headset system. In-ear microphone with Silynx hear-thru technology and sound localization. Modular single-sided headset (left ear bud only) with quick disconnect (QDC) on radio down lead. Power and hear-thru volume control on bottom of control box. Supports one radio or one radio and a smartphone.
Available only in Tan online. 45 to 60-day lead time if not in stock.
ACOUSTICAL RESPONSE
Speaker Frequency Spectrum: 60 HZ to 10,000 HZ
Sound Pressure Level: 115 DB
Max Audio Input Level: 3VP-P
Microphone Frequency Range: 60HZ to 9,000 HZ
Audio Input Type: Single ended or differential
Audio Output Level: 3MVRMS, 600 Ω
HEAR-THRU SYSTEM
Impulse Noise Protection
Extended Sound Localization
BATTERY LIFE EXPECTANCY
Internal 40 Hours with AAA battery
Powered from radio at 5V, 8MA
ENVIRONMENTAL
Operating Temperature: -40°C to +72°C
Storage Temperature: -40°C to +72°C
Humidity: 95%
Immersion (control box): 1M for 30 minutes
Immersion (in-ear headset): 1M for 30 minutes
DIMENSIONS
Control Box: (W) 2.2" x (L) 2.1" x (H) 1.1"
WEIGHT
Control Box: 119G (excluding battery)
Headset: 70G
TWO-WAY RADIO INTEROPERABILITY
PRC-148, AN/PRC-152, Motorola Astro XTS/MTS family of radios, EF Johnson Control Box 51 Fire ES, EF Johnson 51 LT ES, EF Johnson 5100 ES series, Sepura 8000 series Tetra Radios, ICOM IC range of Land Mobile Products and APX radio.
