Part Number: HS0013-DT-SS-00, HS0013-BLK-SS-00

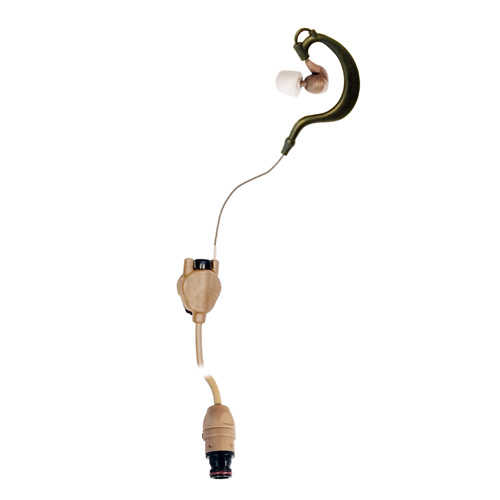

The Silynx single-sided headset is a lightweight, low-profile, in-ear device for clear communications when dual sided headset is not required. The earpiece provides full acoustic occlusion which ensures incoming audio is crisp and clear, while an integrated mic in the earbud allows ambient sounds to pass through for full situational awareness. The single-sided headset incorporates a proprietary in-ear microphone that captures your inner auditory echo, thereby transmitting your true voice with no need for a separate lapel or boom mic. Compatible with CLARUS and CLARUS XPR (QH version) headset systems.

Interface
10-pin QDC to CLARUS / CLARUS XPRQH systems

Acoustic
Speaker Frequency Spectrum: 60 Hz - 12,000 Hz
Sound Pressure Level: >115 dB
Maximum Audio Input Level: 5Vp-p
Microphone Frequency Range: 60,000 - 10,000 Hz

Hear-thru System
Impulse Noise Protection
Extended Sound Localization

Environmental
Operating Temperature: -33°C TO +65°C
Storage Temperature: -40°C TO +72°C
Altitude: 40,000ft
Immersion: 1M for 30 minutes

Dimensions
Headset: 41"(L) x 3" (W) x 0.5" (H)

Weight
Headset Assembly: 47g
Ear Piece: 3.4g
