CLARUS System Single Comms

CLARUS System Single Comms

$940.00$1,085.00

Clear
Quantity

The Silynx CLARUS is the world’s smallest and lightest tactical headset system. The CLARUS offers maximum modularity and flexibility in headset and radio configurations. In addition to accommodating most all headsets and radios in use today, this "smart" system also offers key features such as, blue tooth wireless push-to-talk. CLARUS provides passive and steady state noise control, with electronic hear-thru, in both noisy and normal environments with the Silynx in-ear headset/microphone system. The CLARUS provides intercom interoperability, clear communications, and sound localization for full situational awareness.

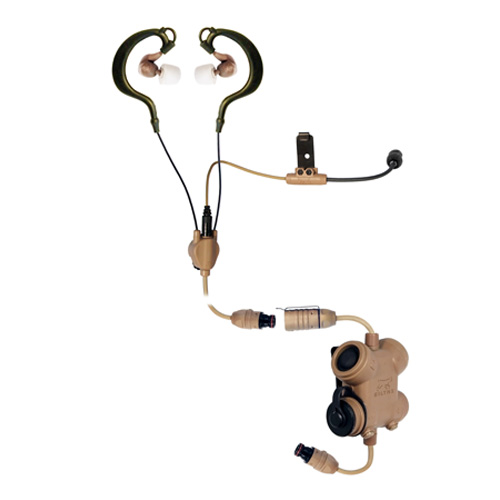

    • Kit includes: (1) CLARUS Control Box, single lead, (1) In-ear Headset, Optional Hybrid Boom Mic, (1) Radio Cable (your choice: MBITR/PRC117/152 6 pin, Motorola APX, or XTS/MTS, Optional Utility Pouch
    • Color availability: Tan, Black

Brochure

Clarus Kit PN:CLAR-T-H-001 (Clarus Control box, In-Ear Headset, 6 pin radio cable) has an NSN: 5895016316658

60 day lead time

ACOUSTICAL RESPONSE
SPEAKER FREQ SPECTRUM: 60 HZ TO 10,000 HZ
SOUND PRESSURE LEVEL: > 115 DB
MAX AUDIO INPUT LEVEL: 3VP-P
MICROPHONE FREQUENCY RANGE: 60HZ TO 9,000 HZ
AUDIO INPUT TYPE: SINGLE ENDED OR DIFFERENTIAL
AUDIO OUTPUT LEVEL: > 3MVRMS, 600 Ω

HEAR-THRU SYSTEM
IMPULSE NOISE PROTECTION
EXTENDED SOUND LOCALIZATION

BATTERY LIFE EXPECTANCY
INTERNAL 40 HOURS AAA
POWERED FROM RADIO AT 5V, 8MA

ENVIRONMENTAL
OPERATING TEMPARATURE: -40°C TO +72°C
STORAGE TEMPERATURE: -40°C TO +72°C
HUMIDITY: 95%
IMMERSION (CONTROL BOX): 1M FOR 30MIN
IMMERSION (IN-EAR HEADSET): 1M FOR 30MIN

DIMENSIONS
CONTROL BOX: (W) 2.2IN X (L) 2.1IN X (H) 1.1IN

WEIGHT
CONTROL BOX: 119G (EXC BATTERY)
HEADSET: 70G

TWO-WAY RADIO INTEROPERABILITY
PRC-148, AN/PRC-152, MOTOROLA ASTRO XTS FAMILY OF RADIOS, EF JOHNSON 51 FIRE ES, EF OHNSON 51 LT ES, EF JOHNSON 5100 ES SERIES, SEPURA 8000 SERIES TETRA RADIOS, ICOM IC RANGE OF LAND MOBILE PRODUCTS AND APEX RADIO.

Weight 1 lbs
Dimensions 7.5 × 5 × 2.5 in
