CLARUS XPR System

CLARUS XPR System

Clear
Quantity

    Part Number: CXPRFH-D, CXPRQH-D

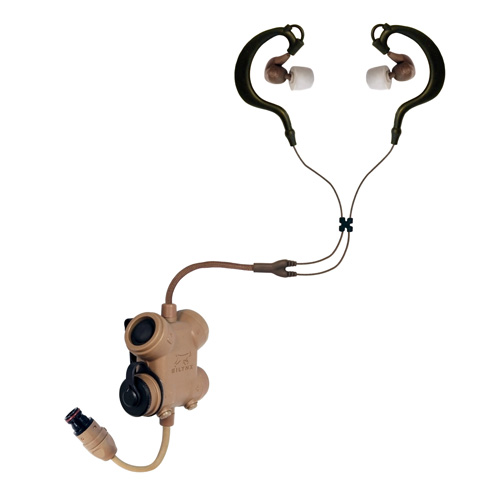

    Industry's smallest and lightest tactical headset system. In-ear microphone with Silynx hear-thru technology and sound localization. Fixed cable (FH version) or modular cable (QH version) to headset (model dependent). Quick disconnect (QDC) on radio down lead (all versions). Power and hear-thru volume control on bottom of control box. Supports one radio or one radio and a smartphone.

    Available only in Tan online. 45 to 60-day lead time if not in stock

    ACOUSTICAL RESPONSE
    SPEAKER FREQ SPECTRUM: 60 HZ TO 10,000 HZ
    SOUND PRESSURE LEVEL: 115 DB
    MAX AUDIO INPUT LEVEL: 3VP-P
    MICROPHONE FREQUENCY RANGE: 60HZ TO 9,000 HZ
    AUDIO INPUT TYPE: SINGLE ENDED OR DIFFERENTIAL
    AUDIO OUTPUT LEVEL: 3MVRMS, 600 Ω

    HEAR-THRU SYSTEM
    IMPULSE NOISE PROTECTION
    EXTENDED SOUND LOCALIZATION

    BATTERY LIFE EXPECTANCY
    INTERNAL 40 HOURS AAA
    POWERED FROM RADIO AT 5V, 8MA

    ENVIRONMENTAL
    OPERATING TEMPARATURE: -40°C TO +72°C
    STORAGE TEMPERATURE: -40°C TO +72°C
    HUMIDITY: 95%
    IMMERSION (CONTROL BOX): 1M for 30 minutes
    IMMERSION (IN-EAR HEADSET): 1M for 30 minutes

    DIMENSIONS
    CONTROL BOX: (W) 2.2IN X (L) 2.1IN X (H) 1.1IN

    WEIGHT
    CONTROL BOX: 119G (EXC BATTERY)
    HEADSET: 70G

    TWO-WAY RADIO INTEROPERABILITY
    PRC-148, AN/PRC-152, MOTOROLA ASTRO XTS FAMILY OF RADIOS, EF JOHNSON 51 FIRE ES, EF OHNSON 51 LT ES, EF JOHNSON 5100 ES SERIES, SEPURA 8000 SERIES TETRA RADIOS, ICOM IC RANGE OF LAND MOBILE PRODUCTS AND APEX RADIO.

    Weight 1 lbs
    Dimensions 7.5 × 5 × 2.5 in
    Headset Cable

    Modular, Fixed

    Radio Cable Adaptor

    6 Pin Hirose, Harris XG-75, Jaguar P5300/P5400/P5500/P7300, MBITR/PRC117/152 6 Pin, Motorola APX, Motorola HT1250/HT1500 XLS/HT750, Motorola MTP850, NX300 Kenwood / TK5210, PRR Side Connector, Vertex VX537 / VX530, XTS/MTS, Yaesu / Vertex 1 Pin Right Angle 3.5mm
