The CLARUS PRO is a unique noise cancelling, hearing protection headset system designed to meet the needs of today’s active headset user! Silynx leveraged its combat proven technologies to defy the convention that electronic hearing protection must be big and bulky or small and fragile! CLARUS PRO is low-profile and environmentally ruggedized to withstand dirt, mud, water, shock, vibration, and any element that would overcome other headsets. Provides active hearing protection (NRR 25), hear-thru capability for situational awareness, and cellphone/mobile audio connectivity.

Clarus Pro

The CLARUS PRO is a unique noise cancelling, hearing protection headset system designed to meet the needs of today’s active headset user! Silynx leveraged its combat proven technologies to defy the convention that electronic hearing protection must be big and bulky or small and fragile! CLARUS PRO is low-profile and environmentally ruggedized to withstand dirt, mud, water, shock, vibration, and any element that would overcome other headsets. Provides active hearing protection (NRR 25), hear-thru capability for situational awareness, and cellphone/mobile audio connectivity.

Specifications

  • System
  • Weight65.2g (exc battery)
  • Dimensions> (W) 42MM x (H) 53MM x (D) 16MM
  • Power SupplyInternal Source
  • Operating Voltage1.5V AAA Battery
  • Acoustical Response
  • Frequency Range0 - 20,000Hz
  • Max Peak Output115 dB
  • Receiver TypeDual Balanced Armature Receiver
  • Microphone TypeNoise Cancelling Electret Microphone
  • Noise Attentuation & Sound Enhancement
  • Hearing ProtectionSNR 30 NRR 25dB
  • Battery Life100 Hours
  • Impulse Noise Protection
  • Extended sound Localization
  • Five Hear-Thru Levels
  • Environmental
  • IP Rating1P67 1M 1/2 HR
  • operating temperature-30°C to +55°C
  • storage temperature-40°C to +71°C
  • humidityMIL-STG-810F
  • Mechanical DropMIL-STG-810G
  • EMIMIL-STG-810F

Leveraging the original CLARUS design and function, the CLARUS Fx2 is an even simpler system for users requiring a single radio connection and a lower price point. The Fx2 (Fixed lead) system, provides battle-tested hearing protection, impulse and steady state noise control, and electronic hear-thru for full situational awareness. Available for most law enforcement radios.

Clarus FX2

Leveraging the original CLARUS design and function, the CLARUS FX2 is an even simpler system for users requiring a single radio connection and a lower price point. The FX2 (Fixed lead) system, provides battle-tested hearing protection, impulse and steady state noise control, and electronic hear-thru for full situational awareness. Available for most law enforcement radios.

Specifications

  • Acoustical Response
  • speaker freq spectrum 60 Hz to 10,000 Hz
  • sound pressure level> 115 DB
  • max audio input level5VP-P
  • microphone frequencyRANGE 60Hz to 9,000 Hz
  • audio input typeSingle ended or differential
  • audio output level> 3MVRMS, 600 Ω
  • Hear-Thru System
  • impulse noise protection
  • extended sound localization
  • Battery Life Expectancy
  • internal40 hours AAA
  • powered from radio at 5V, 8MA
  • Environmental
  • operating temperature-40°C to +72°C
  • storage temperature-40°C to +72°C
  • humidity95%
  • immersion (control box)20M for 30MIN
  • immersion (in-ear headset)1M for 30MIN
  • Dimensions
  • Control Box(W) 2.2in X (L) 2.1in X (H) 0.9in
  • Weight
  • Control Box128g (exc battery & radio connector)
  • Headset70g

Industry’s smallest and lightest tactical headset system. In-ear microphone with Silynx hear-thru technology and sound localization. Fixed cable or modular cable to headset (model dependent). Quick disconnect (QDC) on radio down lead (all versions). Power and hear-thru volume control on bottom of control box.  Supports one radio or one radio and a smartphone.

Available in tan.

Clarus XPR

Industry's smallest and lightest tactical headset system. In-ear microphone with Silynx hear-thru technology and sound localization. Fixed cable or modular cable to headset (model dependent). Quick disconnect (QDC) on radio down lead (all versions). Power and hear-thru volume control on bottom of control box. Supports one radio or one radio and a smartphone. Available in tan.

CLARUS™ is the world’s smallest and lightest headset system. The CLARUS simplifies the user’s operation and accessibility to the PTT switches on the miniaturized control unit.
CLARUS provides impulse and steady state noise protection, with electronic hear-thru, in both noisy and normal environments. It provides intercom interoperability, clear communications, and sound localization for full situational awareness.

Clarus

CLARUS™ is the world’s smallest and lightest headset system. The CLARUS simplifies the user’s operation and accessibility to the PTT switches on the miniaturized control unit.

CLARUS provides impulse and steady state noise protection, with electronic hear-thru, in both noisy and normal environments. It provides intercom interoperability, clear communications, and sound localization for full situational awareness.

Specifications

  • Acoustical Response
  • speaker freq spectrum 60 Hz to 10,000 Hz
  • sound pressure level> 115 DB
  • max audio input level3VP-P
  • microphone frequencyRANGE 60Hz to 9,000 Hz
  • audio input typeSingle ended or differential
  • audio output level> 3MVRMS, 600 Ω
  • Hear-Thru System
  • impulse noise protection
  • extended sound localization
  • Battery Life Expectancy
  • internal40 hours AAA
  • powered from radio at 5V, 8MA
  • Environmental
  • operating temparature-40°C to +72°C
  • storage temperature-40°C to +72°C
  • humidity95%
  • immersion (control box)20M for 30MIN
  • immersion (in-ear headset)1M for 30MIN
  • Dimensions
  • Control Box(W) 2.2in X (L) 2.1in X (H) 1.1in
  • Weight
  • Control Box119g (exc battery)
  • Headset70g
  • Two-Way Radio Interoperability
  • PRC-148, AN/PRC-152, Motorola Astro XTS Family of radios, EF Johnson 51 Fire ES, EF ohnson 51 LT ES, EF Johnson 5100 ES Series, Sepura 8000 Series Tetra Radios, ICOM IC Range of land mobile products and APEX radio.

Offering combat proven in-ear hearing protection, the OPTIMUS was designed for more complex ops and users that require either three and four comms capabilities, or the ability to control radio volume and channels from the PTT control box. Mounting clips attach to either face of the unit, so the user can customize the fit and feel, while receiving impulse and steady state noise control, intercom interoperability, clear communications, and sound localization for full situational awareness. OPTIMUS is a highly capable system in a small, lightweight package.





Optimus

Offering combat proven in-ear hearing protection, the OPTIMUS was designed for more complex ops and users that require either three and four comms capabilities, or the ability to control radio volume and channels from the PTT control box. Mounting clips attach to either face of the unit, so the user can customize the fit and feel, while receiving impulse and steady state noise control, intercom interoperability, clear communications, and sound localization for full situational awareness. OPTIMUS is a highly capable system in a small, lightweight package.

Specifications

  • Acoustical Response
  • speaker freq spectrum 60 Hz to 10,000 Hz
  • sound pressure level> 115 DB
  • max audio input level5VP-P
  • microphone frequencyRANGE 60Hz to 9,000 Hz
  • audio input typeSingle ended or differential
  • audio output level> 3MVRMS, 600 Ω
  • Hear-Thru System
  • impulse noise protection
  • extended sound localization
  • Battery Life Expectancy
  • internal48 hours AAA
  • powered from radio at 5V, 8MA
  • Environmental
  • operating temparature-46°C to +72°C
  • storage temperature-46°C to +72°C
  • humidity95%
  • immersion (control box)1M for 30MIN
  • immersion (in-ear headset)1M for 30MIN
  • Dimensions
  • Control Box(W) 2.4in X (L) 2.6in X (H) 1.0in
  • Weight
  • Control Box205g (exc battery)
  • Headset70g
  • Two-Way Radio Interoperability
  • PRC-148, AN/PRC-152, Motorola Astro XTS Family of radios, EF Johnson 51 Fire ES, EF ohnson 51 LT ES, EF Johnson 5100 ES Series, Sepura 8000 Series Tetra Radios, ICOM IC Range of land mobile products and APEX radio.

The H2OPS, leveraging combat-proven C4OPS technology, provides full-spectrum active noise reduction (ANR), multi platform intercom interoperability, enhanced hear thru capability, and sound localization for complete situational awareness.

H2OPS

The H2OPS, leveraging combat-proven C4OPS technology, provides full-spectrum active noise reduction (ANR), multi platform intercom interoperability, enhanced hear thru capability, and sound localization for complete situational awareness.

Specifications

  • Acoustical Response
  • speaker freq spectrum 60 Hz to 14,000 Hz
  • sound pressure level> 115 DB
  • audio input typesingle-ended
  • max audio input level3V P-P 60 Hz to 9000 Hz
  • audio output typesingle-ended
  • audio output level> 3MVRMS, 600 Ω
  • Hear-Thru System
  • sound localization360°hear-thru
  • ±18° error for continuous duration sound
  • ±41° error for short duration sound
  • noise reduction radio (NRR)22
  • impulse noise threshold95 dB
  • impulse noise attack time <0.1 ms
  • impulse noise insertion loss for blasts 150-190 dB45 dB (average)
  • PC Programmer
  • OS SupportMS Windows XP, Vista and 7
  • InterfaceUSB, Serial
  • Battery Life Expectancy
  • Radio Dependent
  • Dual Wireless PTT1 year for 3.6V 1/2 AA Lithium
  • Environmental
  • operating temparature-31°C to +70°C
  • storage temperature-40°C to +75°C
  • humidity-95% at an ambient temp range +30°C to +60°C
  • altitude40,000ft
  • immersion (control box)1M for 30 MIN
  • immersion (in-ear headset)1M for 30MIN
  • Dimensions
  • Control Box(W) 2.91in X (L) 3.05in X (H) 1.09in
  • Dual Wireless PTT(W) 1.5in X (L) 2.91in X (H) 1.14in
  • Weight
  • Control Box236g

Silynx offers an assortment of headsets, depending on the users requirements. Our primary headset is the in-ear headset which provides hearing protection and enhancement. We offer low vis kits, maritime and single sided ear buds.

Headsets

Silynx offers an assortment of headsets, depending on the users requirements. Our primary headset is the in-ear headset which provides hearing protection and enhancement. We offer low vis kits, maritime and single sided ear buds.

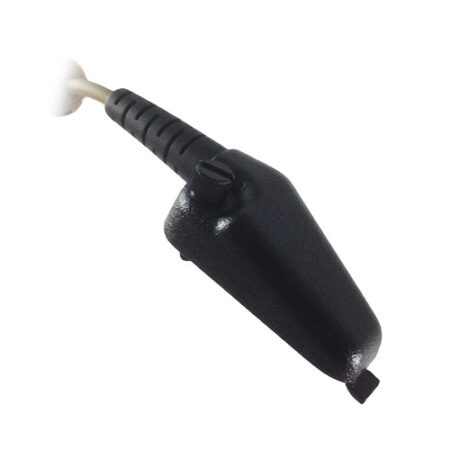

Silynx Accessories are an assortment of products, including cable adaptors, radio adaptors, and wireless PTT,  that work with our control boxes. Our accessories are compatible with the majority of radios and headsets used in the field today.

The Silynx U94 is a rugged, light-weight single-com push-to-talk (PTT). The U94 can be configured for use with a variety of tactical radios and, with standard NEXUS connectivity, the U94 is compatible with a wide range of tactical headsets. The U94 can be used with an optional gas mask adaptor cable and the heavy duty mounting clip can be configured for either left or right hand use.  The Silynx U94 is a versatile, durable, and reliable PTT system.



U94 Adaptor

The Silynx U94 is a rugged, light-weight single-com push-to-talk (PTT). The U94 can be configured for use with a variety of tactical radios and, with standard NEXUS connectivity, the U94 is compatible with a wide range of tactical headsets. The U94 can be used with an optional gas mask adaptor cable and the heavy duty mounting clip can be configured for either left or right hand use. The Silynx U94 is a versatile, durable, and reliable PTT system.

Specifications

  • Interface
  • Headset Nexus Single Comm Jack
  • Radio U329 6 pin audio connector
  • Power
  • Input voltageMinimum 4V
  • Maximum 12V
  • Input current35mA
  • Audio
  • Audio passes between headset and radio
  • Mounting
  • Molle vest
  • Environmental
  • operating temparature-31°C to +70°C
  • storage temperature-40°C to +75°C
  • humidity95%
  • Altitude40,000ft
  • immersion20M for 30MIN
  • Dimensions
  • Chest PTT(W) 1.7in X (L) 2.51in X (H) 1in
  • Total cable length 21.5in
  • Weight
  • Micro U94 150g
  • Two-Way Radio Interoperability
  • PRC-148, PRC-152, PRC-154, Thales JEM

The hSE is a helmet-mount smart earplug system that provides combat proven hearing protection to users without a radio. The extremely low profile hSE is simple to attach to tactical helmets and provides impulse and steady state noise protection in all noise environments, as well as electronic hear-thru and sound localization for full situational awareness.

hSE

The hSE is a helmet-mount smart earplug system that provides combat proven hearing protection to users without a radio. The extremely low profile hSE is simple to attach to tactical helmets and provides impulse and steady state noise protection in all noise environments, as well as electronic hear-thru and sound localization for full situational awareness.

Specifications

  • Acoustical Response
  • speaker freq spectrum 60 Hz to 10,000 Hz
  • audio input typesingle-ended
  • max audio input level5V P-P
  • audio output typesingle-ended
  • audio output level> 3MVRMS, 600 Ω
  • Hear-Thru System
  • Impulse noise protection
  • extended sound localization
  • Battery Life Expectancy
  • Internal AAA74 hours
  • Environmental
  • operating temparature-40°C to +72°C
  • storage temperature-40°C to +72°C
  • humidity95%
  • immersion (control box)20M for 2hrs
  • immersion (in-ear headset)1M for 30MIN
  • Dimensions
  • Control Box(W) 2.91in X (L) 3.74in X (H) 1.4in
  • Weight
  • Control Box110g (exc battery)
  • Headset50g

The Silynx Micro Wireless Push-to-Talk (MWPTT) enables users to remotely and wirelessly PTT their comms devices. Pair the MWPTT with a Silynx control box in seconds, and it will PTT up to two devices, including radios, smartphones, and various platform ICS. With an optional 2.5mm jack, the MWPTT supports a removable ring finger PTT, ideal for snipers and airborne operations.

Powered by a standard AAA battery, the MWPTT is 20m immersible and features a primary and secondary PTT, with easy plug and play simplicity.

MWPTT

The Silynx Micro Wireless Push-to-Talk (MWPTT) enables users to remotely and wirelessly PTT their comms devices. Pair the MWPTT with a Silynx control box in seconds, and it will PTT up to two devices, including radios, smartphones, and various platform ICS. With an optional 2.5mm jack, the MWPTT supports a removable ring finger PTT, ideal for snipers and airborne operations.

Powered by a standard AAA battery, the MWPTT is 20m immersible and features a primary and secondary PTT, with easy plug and play simplicity.

Specifications

  • Wireless
  • RF Transceiver 2.4 GHz IEEE 802.15.4
  • Protocol ZigBee 2006
  • Range 2m
  • Power Source
  • MWPTT Internal 1.5V AAA Battery
  • Mounting
  • Picatinny rail mount
  • Optional wrist strap

  • Environmental
  • operating temp-31°C to +70°C
  • storage temp-40°C to +75°C
  • humidity95% at ambient temp range +30°C to 60°C
  • altitude40,000ft
  • immersion20m for 2hr
  • Dimensions
  • MWPTT(L) 2.5in X (W) 1.35in X (H) 0.80in
  • Weight
  • MWPTT44.38g (including battery)

CLARUS Pro
Clarus Pro

The CLARUS PRO is a unique noise cancelling, hearing protection headset system designed to meet the needs of today’s active headset user! Silynx leveraged its combat proven technologies to defy the convention that electronic hearing protection must be big and bulky or small and fragile! CLARUS PRO is low-profile and environmentally ruggedized to withstand dirt, mud, water, shock, vibration, and any element that would overcome other headsets. Provides active hearing protection (NRR 25), hear-thru capability for situational awareness, and cellphone/mobile audio connectivity.

Specifications

  • System
  • Weight65.2g (exc battery)
  • Dimensions> (W) 42MM x (H) 53MM x (D) 16MM
  • Power SupplyInternal Source
  • Operating Voltage1.5V AAA Battery
  • Acoustical Response
  • Frequency Range0 - 20,000Hz
  • Max Peak Output115 dB
  • Receiver TypeDual Balanced Armature Receiver
  • Microphone TypeNoise Cancelling Electret Microphone
  • Noise Attentuation & Sound Enhancement
  • Hearing ProtectionSNR 30 NRR 25dB
  • Battery Life100 Hours
  • Impulse Noise Protection
  • Extended sound Localization
  • Five Hear-Thru Levels
  • Environmental
  • IP Rating1P67 1M 1/2 HR
  • operating temperature-30°C to +55°C
  • storage temperature-40°C to +71°C
  • humidityMIL-STG-810F
  • Mechanical DropMIL-STG-810G
  • EMIMIL-STG-810F

CLARUS FX2
Clarus FX2

Leveraging the original CLARUS design and function, the CLARUS FX2 is an even simpler system for users requiring a single radio connection and a lower price point. The FX2 (Fixed lead) system, provides battle-tested hearing protection, impulse and steady state noise control, and electronic hear-thru for full situational awareness. Available for most law enforcement radios.

Specifications

  • Acoustical Response
  • speaker freq spectrum 60 Hz to 10,000 Hz
  • sound pressure level> 115 DB
  • max audio input level5VP-P
  • microphone frequencyRANGE 60Hz to 9,000 Hz
  • audio input typeSingle ended or differential
  • audio output level> 3MVRMS, 600 Ω
  • Hear-Thru System
  • impulse noise protection
  • extended sound localization
  • Battery Life Expectancy
  • internal40 hours AAA
  • powered from radio at 5V, 8MA
  • Environmental
  • operating temperature-40°C to +72°C
  • storage temperature-40°C to +72°C
  • humidity95%
  • immersion (control box)20M for 30MIN
  • immersion (in-ear headset)1M for 30MIN
  • Dimensions
  • Control Box(W) 2.2in X (L) 2.1in X (H) 0.9in
  • Weight
  • Control Box128g (exc battery & radio connector)
  • Headset70g

CLARUS XPR
Clarus XPR

Industry's smallest and lightest tactical headset system. In-ear microphone with Silynx hear-thru technology and sound localization. Fixed cable or modular cable to headset (model dependent). Quick disconnect (QDC) on radio down lead (all versions). Power and hear-thru volume control on bottom of control box. Supports one radio or one radio and a smartphone. Available in tan.

Clarus
Clarus

CLARUS™ is the world’s smallest and lightest headset system. The CLARUS simplifies the user’s operation and accessibility to the PTT switches on the miniaturized control unit.

CLARUS provides impulse and steady state noise protection, with electronic hear-thru, in both noisy and normal environments. It provides intercom interoperability, clear communications, and sound localization for full situational awareness.

Specifications

  • Acoustical Response
  • speaker freq spectrum 60 Hz to 10,000 Hz
  • sound pressure level> 115 DB
  • max audio input level3VP-P
  • microphone frequencyRANGE 60Hz to 9,000 Hz
  • audio input typeSingle ended or differential
  • audio output level> 3MVRMS, 600 Ω
  • Hear-Thru System
  • impulse noise protection
  • extended sound localization
  • Battery Life Expectancy
  • internal40 hours AAA
  • powered from radio at 5V, 8MA
  • Environmental
  • operating temparature-40°C to +72°C
  • storage temperature-40°C to +72°C
  • humidity95%
  • immersion (control box)20M for 30MIN
  • immersion (in-ear headset)1M for 30MIN
  • Dimensions
  • Control Box(W) 2.2in X (L) 2.1in X (H) 1.1in
  • Weight
  • Control Box119g (exc battery)
  • Headset70g
  • Two-Way Radio Interoperability
  • PRC-148, AN/PRC-152, Motorola Astro XTS Family of radios, EF Johnson 51 Fire ES, EF ohnson 51 LT ES, EF Johnson 5100 ES Series, Sepura 8000 Series Tetra Radios, ICOM IC Range of land mobile products and APEX radio.

Optimus
Optimus

Offering combat proven in-ear hearing protection, the OPTIMUS was designed for more complex ops and users that require either three and four comms capabilities, or the ability to control radio volume and channels from the PTT control box. Mounting clips attach to either face of the unit, so the user can customize the fit and feel, while receiving impulse and steady state noise control, intercom interoperability, clear communications, and sound localization for full situational awareness. OPTIMUS is a highly capable system in a small, lightweight package.

Specifications

  • Acoustical Response
  • speaker freq spectrum 60 Hz to 10,000 Hz
  • sound pressure level> 115 DB
  • max audio input level5VP-P
  • microphone frequencyRANGE 60Hz to 9,000 Hz
  • audio input typeSingle ended or differential
  • audio output level> 3MVRMS, 600 Ω
  • Hear-Thru System
  • impulse noise protection
  • extended sound localization
  • Battery Life Expectancy
  • internal48 hours AAA
  • powered from radio at 5V, 8MA
  • Environmental
  • operating temparature-46°C to +72°C
  • storage temperature-46°C to +72°C
  • humidity95%
  • immersion (control box)1M for 30MIN
  • immersion (in-ear headset)1M for 30MIN
  • Dimensions
  • Control Box(W) 2.4in X (L) 2.6in X (H) 1.0in
  • Weight
  • Control Box205g (exc battery)
  • Headset70g
  • Two-Way Radio Interoperability
  • PRC-148, AN/PRC-152, Motorola Astro XTS Family of radios, EF Johnson 51 Fire ES, EF ohnson 51 LT ES, EF Johnson 5100 ES Series, Sepura 8000 Series Tetra Radios, ICOM IC Range of land mobile products and APEX radio.

H2OPS
H2OPS

The H2OPS, leveraging combat-proven C4OPS technology, provides full-spectrum active noise reduction (ANR), multi platform intercom interoperability, enhanced hear thru capability, and sound localization for complete situational awareness.

Specifications

  • Acoustical Response
  • speaker freq spectrum 60 Hz to 14,000 Hz
  • sound pressure level> 115 DB
  • audio input typesingle-ended
  • max audio input level3V P-P 60 Hz to 9000 Hz
  • audio output typesingle-ended
  • audio output level> 3MVRMS, 600 Ω
  • Hear-Thru System
  • sound localization360°hear-thru
  • ±18° error for continuous duration sound
  • ±41° error for short duration sound
  • noise reduction radio (NRR)22
  • impulse noise threshold95 dB
  • impulse noise attack time <0.1 ms
  • impulse noise insertion loss for blasts 150-190 dB45 dB (average)
  • PC Programmer
  • OS SupportMS Windows XP, Vista and 7
  • InterfaceUSB, Serial
  • Battery Life Expectancy
  • Radio Dependent
  • Dual Wireless PTT1 year for 3.6V 1/2 AA Lithium
  • Environmental
  • operating temparature-31°C to +70°C
  • storage temperature-40°C to +75°C
  • humidity-95% at an ambient temp range +30°C to +60°C
  • altitude40,000ft
  • immersion (control box)1M for 30 MIN
  • immersion (in-ear headset)1M for 30MIN
  • Dimensions
  • Control Box(W) 2.91in X (L) 3.05in X (H) 1.09in
  • Dual Wireless PTT(W) 1.5in X (L) 2.91in X (H) 1.14in
  • Weight
  • Control Box236g

Headsets
Headsets

Silynx offers an assortment of headsets, depending on the users requirements. Our primary headset is the in-ear headset which provides hearing protection and enhancement. We offer low vis kits, maritime and single sided ear buds.

Accessories
