CLARUS FX2 System

CLARUS FX2 System

$477.00$565.00

Clear
Quantity

SKU : CFX2ITEB-002, CFX2ITEB-001, CFX2ITEB-003

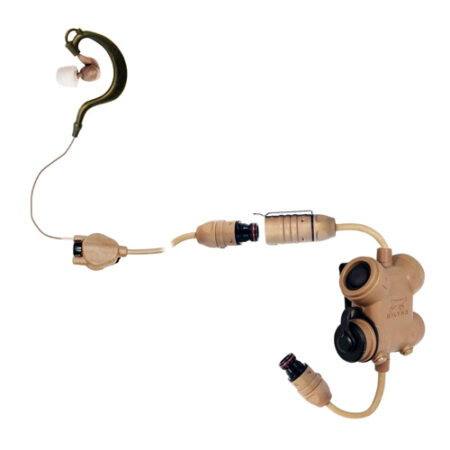

Industry's smallest and lightest and most affordable tactical in-ear hearing protection/enhancement system. Its in-ear microphone eliminates the need for an external boom mic. The FX2 also incorporates Silynx's Hear-thru and sound localization technology. With fixed cables to the headset and to the radio connector the FX2 is very simple to deploy. Power / hear-thru volume control button on front face of the control box. Supports single radio only.

Available in black, optional addtion: Utility Pouch

Brochure

60 day lead time if not in stock

ACOUSTICAL RESPONSE
SPEAKER FREQ SPECTRUM: 60 HZ TO 10,000 HZ
SOUND PRESSURE LEVEL: > 115 DB
MAX AUDIO INPUT LEVEL: 5VP-P
MICROPHONE FREQUENCY RANGE: 60HZ TO 9,000 HZ
AUDIO INPUT TYPE: SINGLE ENDED OR DIFFERENTIAL
AUDIO OUTPUT LEVEL: > 3MVRMS, 600 Ω

HEAR-THRU SYSTEM
IMPULSE NOISE PROTECTION
EXTENDED SOUND LOCALIZATION

BATTERY LIFE EXPECTANCY
INTERNAL40 HOURS AAA
POWERED FROM RADIO AT 5V, 8MA

ENVIRONMENTAL
OPERATING TEMPERATURE: -40°C TO +72°C
STORAGE TEMPERATURE: -40°C TO +72°C
HUMIDITY: 95%
IMMERSION (CONTROL BOX): 1M FOR 30MIN
IMMERSION (IN-EAR HEADSET): 1M FOR 30MIN

DIMENSIONS
CONTROL BOX: (W) 2.2IN X (L) 2.1IN X (H) 0.9IN

WEIGHT
CONTROL BOX: 128G (EXC BATTERY & RADIO CONNECTOR)
HEADSET: 70G

Weight 1 lbs
Dimensions 7.5 × 5 × 2.5 in
Connectors

6 Pin connector, 6 Pin Hirose Connector, APX Side Connector, Harris XG-75 Connector, Jaguar P5300/P5400/P5500/P7300 Connector, Motorola HT1250 / HT1500 XLS / HT750, Motorola MTP850 Connector, NX300 Kenwood / TK5210 Connector, Vertex VX537 / VX530 Connector, XTS Side Connector, Yaesu / Vertex 1 Pin Right Angle 3.5mm Connector

Utility Pouch

Include Utility Pouch, No Utility Pouch
