Silynx Covert System

Silynx Covert System



Part Number: HS0005-46-AA

The Silynx Covert kit enables users to hide in plain sight, concealing all communication components under civilian clothing. The user and/or operational requirements determine whether to go fully covert, using the wireless earpiece, or semi-covert, with the coil acoustic tube. The unique wireless key fob push-to-talk (PTT) allows for discreet communications, no matter how public the environment.

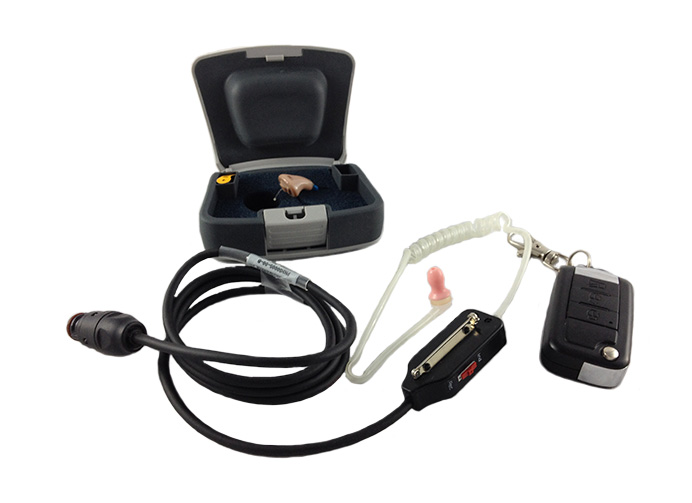

The Covert kit includes a wireless earpiece (incl. battery), acoustic tube, covert induction cable, and a key fob PTT.

Civilian headset adaptor & cable sold separately.

Audio Response
Audio Frequency Spectrum: 300 Hz to 3,000 Hz
Impedance: 31 ohms @ 500 Hz
Max Audio Input Level: 5V p-p
Acoustical Output: 90 dB SPL

Wireless Earpiece
Maximum Power output: 108 dB at 3,000 Hz
Maximum Acoustic Gain: 44 dB
Frequency Range: 150 to 8,000 Hz

Microphone Sensitivity
Audio Frequency Spectrum: 300 Hz to 10,000 Hz
Input: 100 mVrms from the CLARUS System

Operating Temperature: -31°C TO +65°C
Storage Temperature: -33°C TO +71°C
Humidty: 95%

Wireless Earpiece: 1g (excluding battery)
induction cable Adaptor: 64.6g
Acoustic Tube: 2.8g
Key FOB Wireless PTT: 45.3g

Wireless Earpiece: 1.4v battery
Key FOB PTT: 12V 27A

Weight 1 lbs
Dimensions 3 × 5 × 3 in
